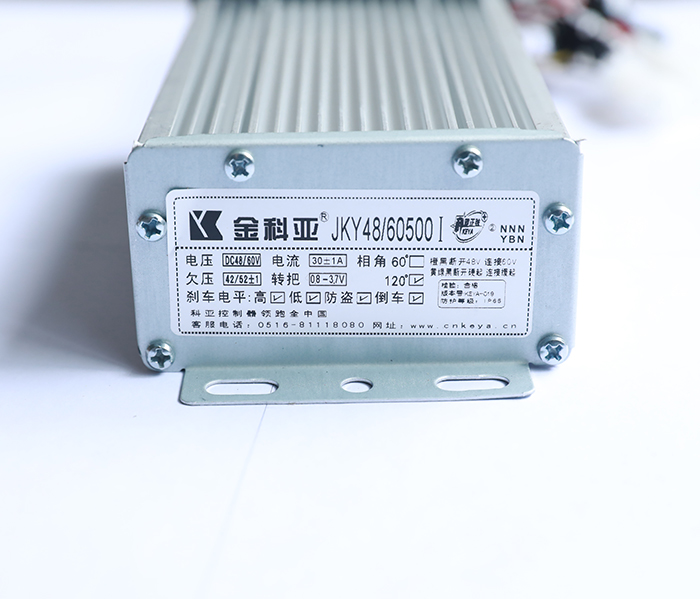

JKY48V500W
Product introduction
Product model | JKY48V500W | JKY60V500W | JKY72V500W |
parameter | |||
Input voltage range（DC/V） | 42-62 | 62-75 | 63-92 |
Rated current（DC/A） | 32A | 28A | 23A |
Rated power（W） | 500W | 500W | 500W |
The maximum torque（N·m） | 130 | 130 | 130 |
Operating temperature（℃） | -20℃～60℃ | -20℃～60℃ | -20℃～60℃ |
Protection grade | IP65 | IP65 | IP65 |
Maximum efficiency | 86% | 86% | 86% |
Cooling way | Natural cooling | Natural cooling | Natural cooling |
The weight | 590g | 590g | 590g |
Overall dimensions(mm) | 177*85*46 | 177*85*46 | 177*85*46 |
（L*W*H） |
|
